Photos from the FlirOne / Android device
combination by Juan Corrin with Peter Clewes.

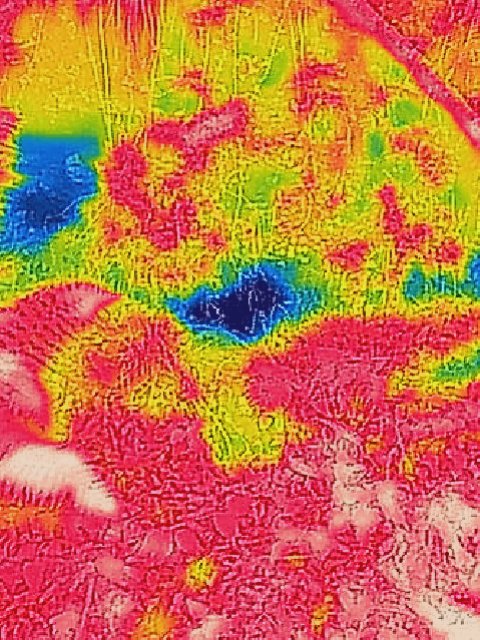

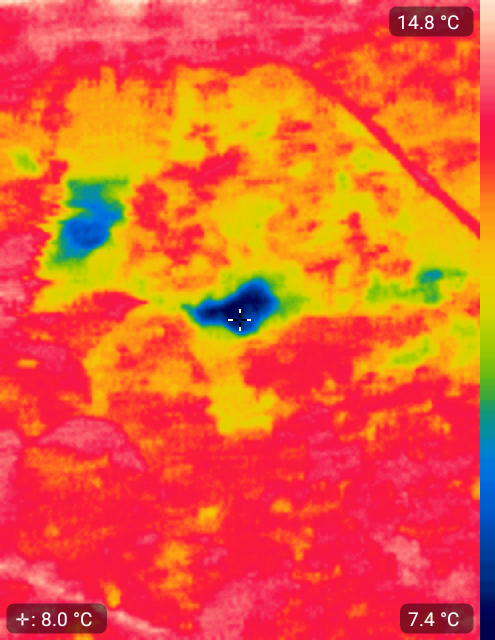

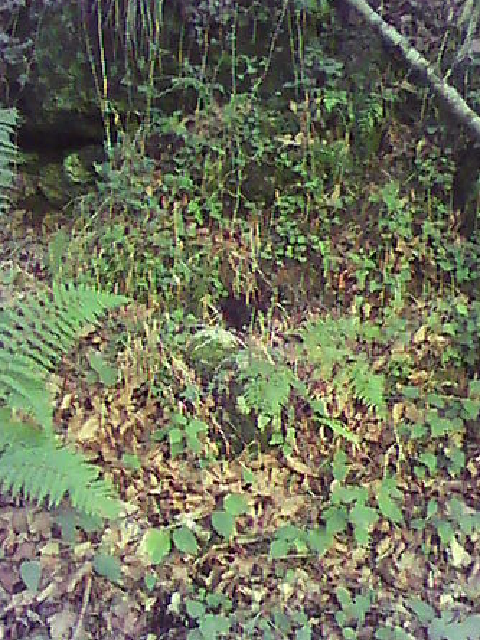

1-3: Visible, IR and combined visible/IR photos of site 4600.
Although the cold spots are prominent, a trail
of cold air from the strongly draughting area is less so.

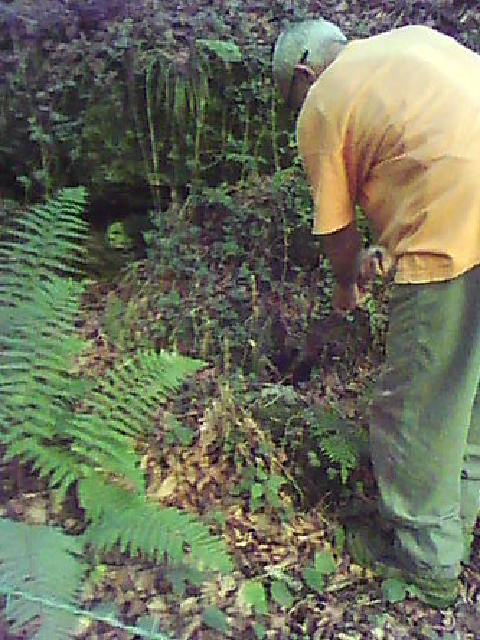

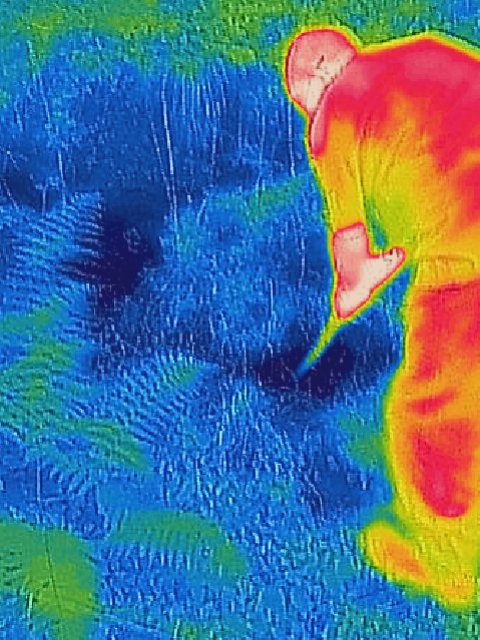

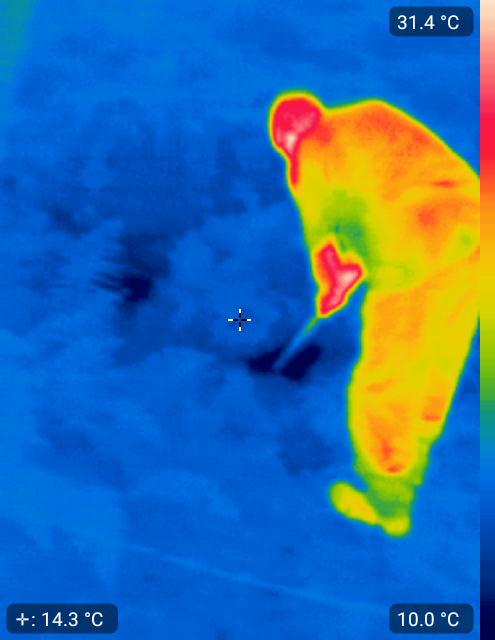

Photos B1,2,3 show that putting a person in the picture
reduces the range of colours available for the cooling
effect of the draught.

1

2

3

A


B
